Integrated Stepper Motors merge stepper motors and drive electronics, streamlining motion control. This integration enhances precision, reduces wiring complexity, and optimizes performance in various automation and robotics applications.
QuickStart integrated solution for power drive
The integrated stepper motor is the latest type of motor drive integration, using the latest special motor control digital signal processor to improve the comprehensive performance of the motor, reduce the heating degree of the motor and reduce the vibration of the motor, the motor and the driver integrated design, the installation is more compact, reduce external interference.
It is suitable for all kinds of small and medium-sized automation equipment and instruments, such as: medical equipment, testing equipment, marking machines, plotters, etc. Meet the requirements of customers such as low noise, low heat, convenient wiring, and stronger anti-interference.
Features of QuickStart's Integrated Stepper Motors
- Themotor and drive are integrated, saving wiring labor
- Small size, easy to install
- Anew generation of 32-bit DSP technology, with good stability, strong compatibility and high cost performance
- The external DIP sets the initial rotation direction, current, and subdivisionof the driver
- Optically isolated differential signal input
- Built-in micro-subdivision, excellent low-speed stability
- Precision current control greatly reduces the heat generation of the motor
- Low vibration and low noise
- It has alarm protection functions such as overvoltage,
undervoltage, phase loss, and out-of-tolerance - The driver series has the following options: open and closed loop: pulse control, analog, potentiometer speed regulation,
485 bus (Can bus…….. Customizable)

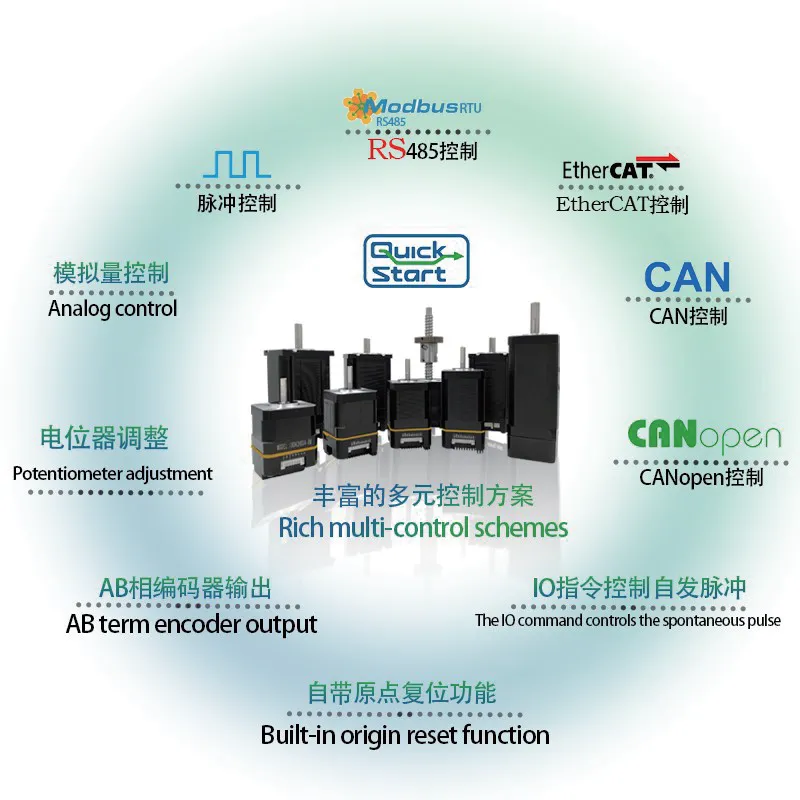

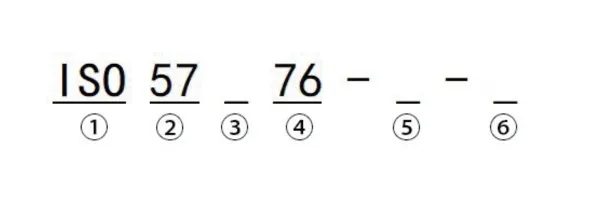

Product Naming Conventions
- Company code: ISO open loop series, ISC closed loop series
- Base number: TV overall dimensions, 57=57*57mm
- Step angle: HS: open loop two phase:1.8 stepper motor
HB: 1000 line closed loop encoder - body length: 76=76mm
- Pulse control: Control: NO
485 none 485
Analog control: 10
Others: - Special application code
Explore Our Integrated Stepper Motors

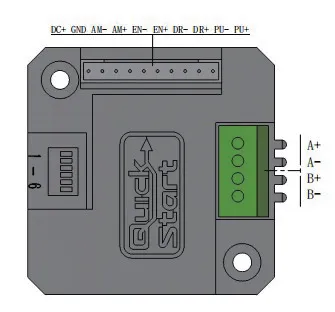

42 mm Integrated Stepper Motor

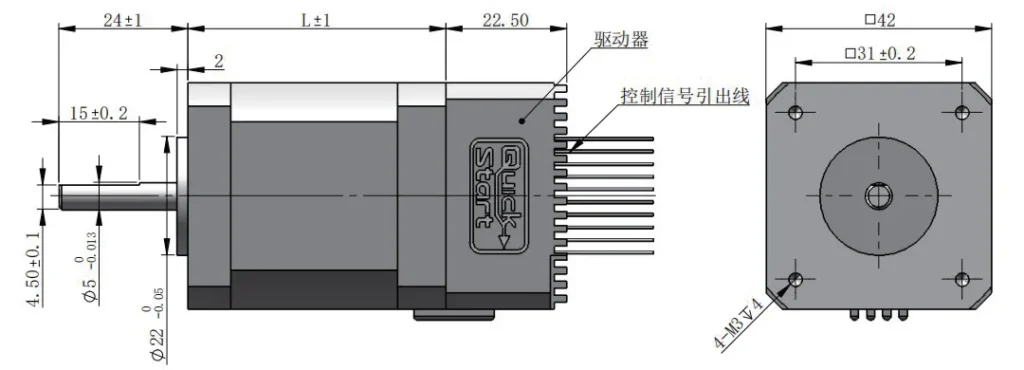

Installation Dimension Drawing (Unit: mm)
| Motor technical parameters | |||||||
| Motor Specifications (mm) | Fuselage Length L(mm) | Step Angle( 。) | phase resistance (2) | Phase Inductance (mH) | Phase Current (A) | Static Moment (N.m) | Rotor Inertia (g.cm2) |
| 42 | 34 | 1.8 | 1.8 | 2.6 | 1.5 | 0.21 | 35 |
| 40 | 2.3 | 4.3 | 1.5 | 0.4 | 54 | ||
| 48 | 0.8 | 1.8 | 2.5 | 0.6 | 70 | ||
| 60 | 1 | 2.8 | 2.5 | 0.8 | 105 | ||
| 92(Shaft diameter 8) | 2.0 | 5.8 | 3.0 | 1.5 | 200 | ||
57 mm Integrated Stepper Motor

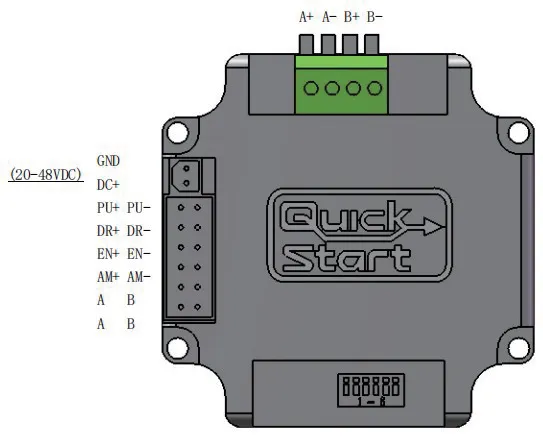

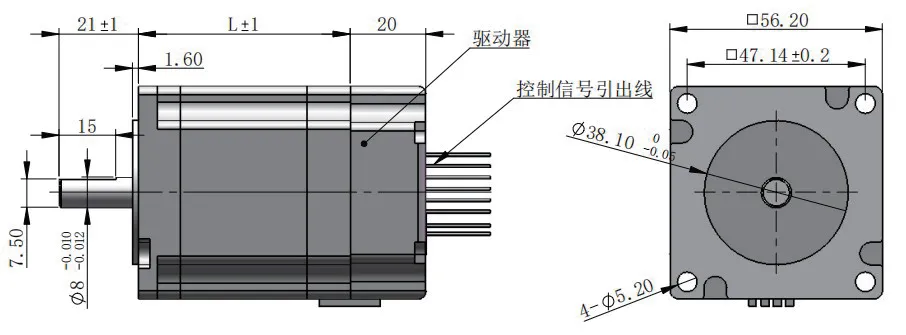

Installation Dimension Drawing (Unit: mm)
| Motor Technical Parameters | |||||||
| Motor Specifications (mm) | Fuselage Length L(mm) | Step Angle (Q) | Phase Resistance (Ω) | Phase Inducta nce (mH) | Phase Current (A) | Static Moment (N.m) | Rotor Inertia (g.cm²) |
| 57 | 41 | 1.8 | 0.75 | 1.5 | 3 | 0.6 | 120 |
| 45 | 0.75 | 2.5 | 3 | 0.8 | 150 | ||
| 56 | 1 | 4.5 | 3 | 1.3 | 300 | ||
| 65 | 0.78 | 3.3 | 4 | 1.6 | 400 | ||
| 76 | 0.95 | 4.5 | 4 | 2.1 | 480 | ||
| 80 | 0.97 | 5.8 | 4 | 2.2 | 500 | ||
| 100 | 0.75 | 3.2 | 4 | 2.7 | 700 | ||
| 112 | 0.81 | 4.6 | 5 | 3 | 800 | ||
60 mm Integrated Stepper Motor

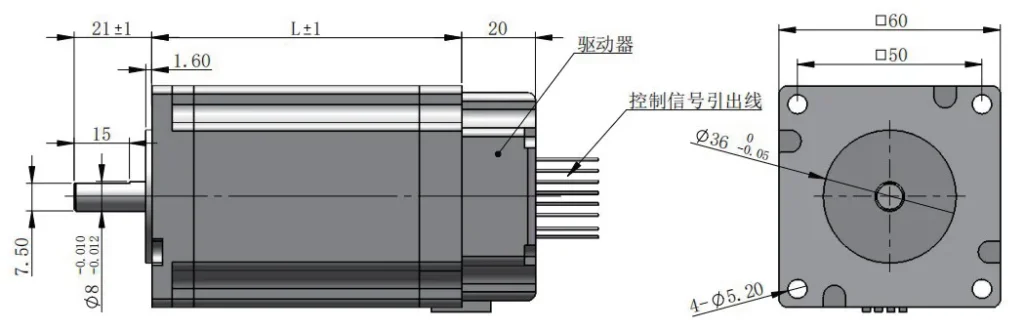

Installation Dimension Drawing (Unit: mm)
| Motor Technical Parameters | |||||||
| Motor Specifications (mm) | Fuselage Length L(mm) | Stp Angle (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Phase Current (A) | Static Moment (N.m) | Rotor Inertia (g.cm2) |
| 60 | 84 | 1.8 | 0.46 | 2.0 | 5 | 3 | 690 |
| 100 | 0.74 | 2.83 | 5 | 3.5 | 850 | ||
| 112 | 0.81 | 3.23 | 5 | 4 | 960 | ||
