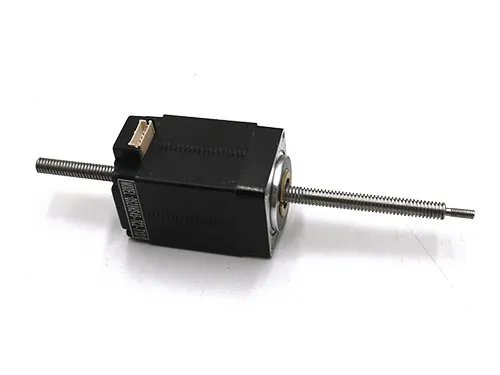

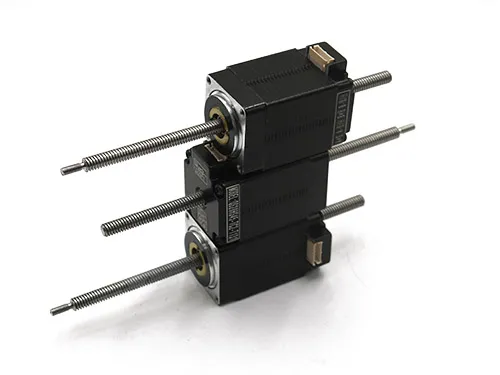

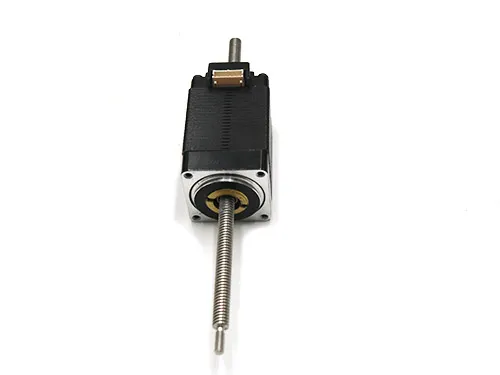

Main Linear Screw Stepper Motor, Hollow Shaft Stepper Motor
Product Model:QS20HS42-TA4-T150
Rated voltage:4.0V
Rated current:0.5A
Standard thrust:15-25N
Motor phase:2P
Standard speed:6-15MM/S
| NO。OF Phases | 2P | Step length | 0.01MM/step |
| Step angle | 1.8o ±5% | Insulation Class | B |
| Rated voltage | 4.0V | Working Temperature | -20OC~~+50OC |
| Rated current | 0.5A | Inertia | 0.19Kg.C㎡ |
| Resistance | 7.0Ω | Temperature Rise | 80KMAX。 |
| Wire rod diameter | 3.5MM | Weight | 95g |
| Screw thread lead | 2MM | Holding torque | 15-25N |
| Number of threads | 2 | Minimum thrust | 15N/6-15MM/S |
| Type of wire rod | Trapezoidal Screws | Wire rod material | stainless steels ACME |
