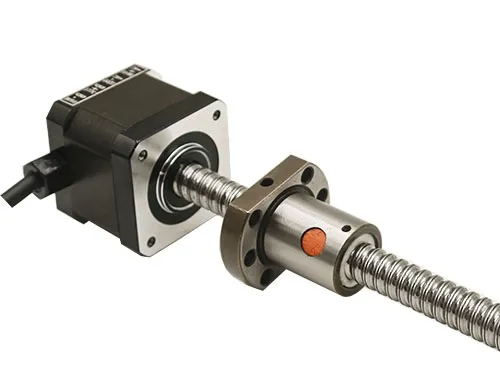

Main Linear Screw Stepper Motor, Hollow Shaft Stepper Motor
Number:QS28HS45-GY2-E130
Rated voltage:1.8V
Rated current:2.9A
Standard thrust:80~120N
Motor phase:2P
Standard speed:1-10MM/S
| NO。OF Phases | 2P | Step length | |
| Step angle | 1.8o | Insulation Class | B |
| Rated voltage | 2.9V | Working Temperature | -20OC~~+50OC |
| Rated current | 1A | Inertia | 13g.C㎡ |
| Resistance | 2.9Ω | Temperature Rise | 85KMAX。 |
| Wire rod material | 不锈钢ACME | Weight | 180g |
| Type of wire rod | 滚珠丝杆 | Holding torque | 80~120N |
| Accuracy grade | C7 | Minimum thrust | 1~10mm/s |
